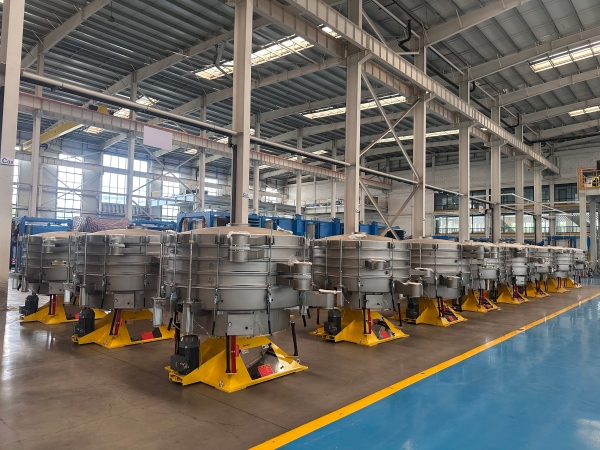

Over 3700 units of YBS models have been sold since 2006 year
INTRODUCTION
Weiliang YBS tumbler screening machine generates three-dimensional elliptical movement that enables screening of fine & ultra-fine particles with high efficiency. Because of its unique design, high life time utility, and the flexible angular velocity that the tumbler screener can achieve, it is widely applied in variuos industries. What’s more, with efficient screen-cleaning systems such as balls, brushes, ultrasound, YBS tumbler screener is successful in preventing blinding and maintaining efficient screening.
The product is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer products fall through the screen near the center and the coarser products successively move to the periphery. The material moves in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each layer.
ADVANTAGES
* Three-dimensional movement increases material/screen mesh contact time thus screening efficiency is highly improved
* Up to five layers, and largest model to diameter 2900mm, large capacity could be reached
* Low acceleration, long service life of all parts, low noise
* No mesh-blinding problem with screen-cleaning devices
* Ability to effectively screen irregularly shaped particles
* Easy operation, screen replacement would be much more easier with pneumatic lifting device, for maximum time saving when changing screens
Rotary Brush Cleaning
Silicone Ball Cleaning
Ultrasonic Cleaning
| MODEL | SCREEN AREA (M²) | OCCUPYING AREA (M²) | POWER (KW) | DIMENSIONS (L*W*H) | DIAMETER |
|---|---|---|---|---|---|
| YBS-1000-1S | 0.76 | >0.81 | 1.5 | 900mm*1182mm*623mm | 1040mm |
| YBS-1200-1S | 1.11 | >1.57 | 1.5 | 1100mm*1277mm*707mm | 1250mm |
| YBS-1600-1S | 1.83 | >2.50 | 3.0 | 1340mm*1358mm*723mm | 1580mm |
| YBS-2000-1S | 2.62 | >3.24 | 4.0 | 1340mm*1472mm*850mm | 1880mm |
| YBS-2200-1S | 3.7 | >4.5 | 4.0 | 1600mm*1532mm*850mm | 2200mm |
| YBS-2600-1S | 5.31 | >6.76 | 5.5 | 1940mm*1586mm*838mm | 2650mm |
| YBS-2900-1S | 6.39 | >7.60 | 7.5 | 2450mm*1577mm*864mm | 2909mm |
Weiliang YBS tumbler screening machines are efficient in bulk material grading, safety screening, and dedusting in various industries. They are especially well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 size ranges.
